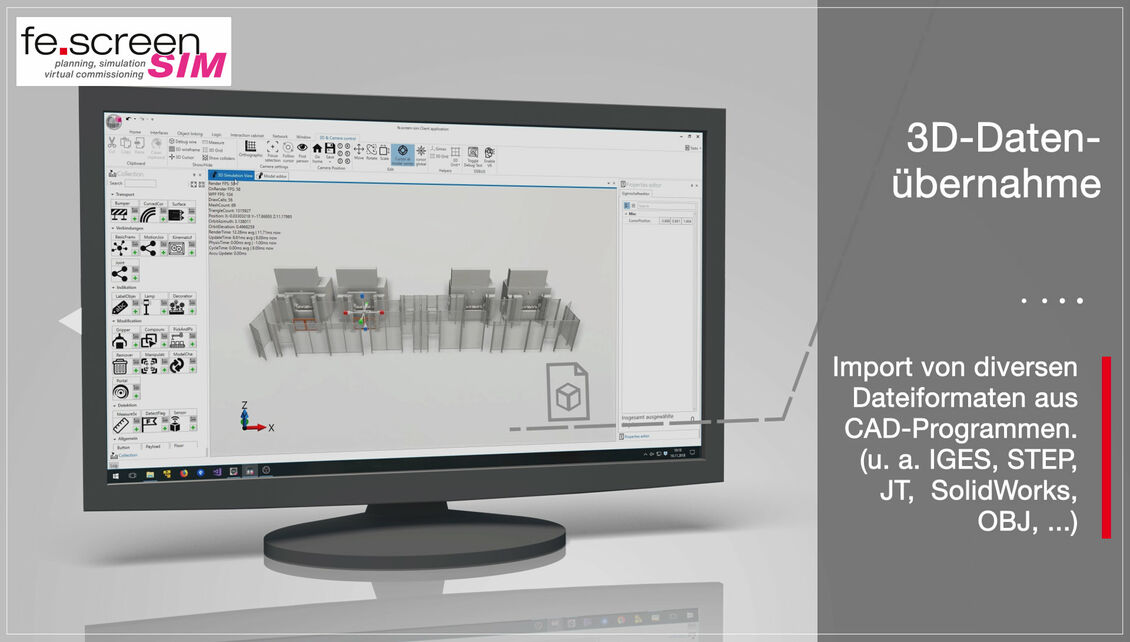

The basis for the model creation is usually the mechanical CAD model, if available. The data import takes place in the most common CAD formats, such as SolidWorks, Step, JT, OBJ, FBX or AML.
Transfer of data from the CAD model
The imported CAD data is converted into a own format so that the design data is protected when the simulation model is passed on.
fe.screen-sim takes over the complete tree structure from the CAD model, including existing kinematics. Change data from the CAD model can be transferred just as easily as changes back into the CAD model resulting from the simulation model. A simplification of the models is possible and is realized by algorithms.
