CabinetTest – Cabinet testing tool

The application "CabinetTest" provides a combination of hardware and software components which enable the execution of automated and logged cabinet tests. The "CabinetTest" can either be integrated into the 3D simulation software "fe.screen-sim" or used as a stand-alone tool.

The mode of operation

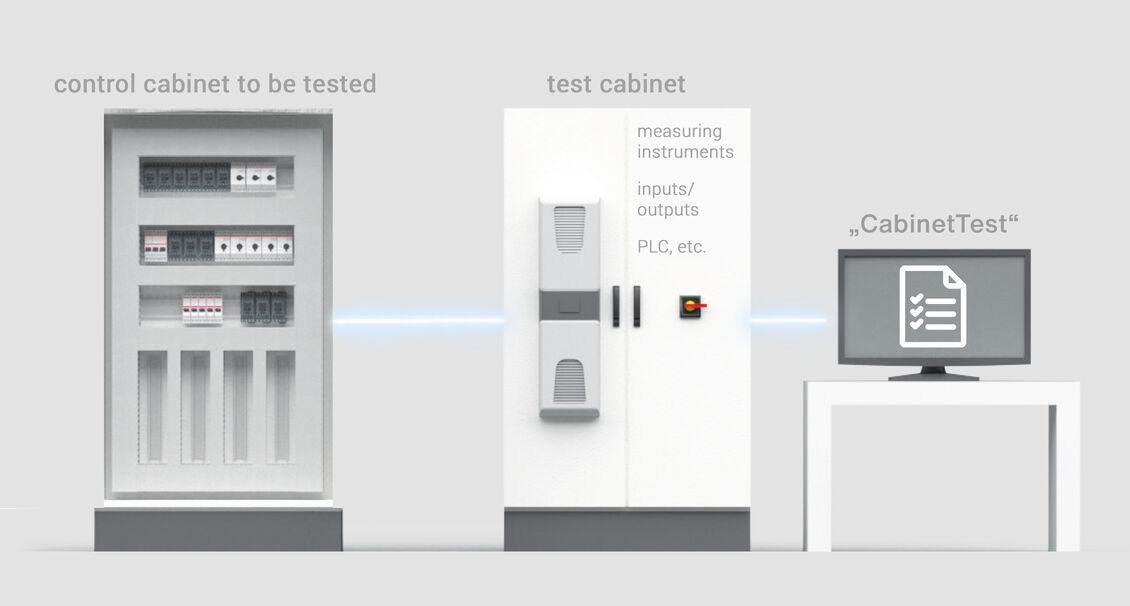

In addition to the "CabinetTest" application, a test cabinet is required to carry out the cabinet test. This cabinet contains various test devices and is connected to the software. Of course, an individual and modular adaptation of the test cabinet to the most diverse requirements is possible.

The control cabinet to be tested is then coupled to the test cabinet. At the same time, the test steps to be carried out are defined in the "CabinetTest" software. Documents for detailed explanations can be added to the individual tests.

The software then controls the test cabinet, which carries out the pre-defined tests - e.g. of voltages, rotating fields as well as digital and analog signals - step by step in the control cabinet to be tested. The software displays the results and automatically logs the test execution.

View into the interior of a control cabinet

The advantages at a glance

  • Automation of the control cabinet test procedures and the associated time savings.
  • Clear and uniform structuring of the test procedures and exclusion of potential sources of error.
  • Automatic logging and documentation of the test execution.
  • Increased safety, as the control cabinet is only live for the duration of the test.

F.EE – Your partner in control cabinet construction

F.EE has an 10,000 m² control cabinet production centre. Here, approx. 4,000 running metres of control cabinets of all kinds are assembled, wired and tested annually: Individual cabinets, series cabinets, control consoles, control boxes and terminal boxes from planning to design and in compliance with the standards and regulations for control cabinet manufacturing.


Control cabinet construction services

  • Vendor consignment stores.
  • High quality standard through test field and function simulation, if necessary also including fieldbus test, device pre-parameterisation etc.
  • Fixed price or unit prices.
  • Construction according to specification including test protocols, parts lists etc.
  • Special housing or special colours.
  • Many years of industry knowledge regarding customer and country regulations.
  • Customer certification of our control cabinet production is possible.
  • Possible manufacturing variants:
    • Project production: F.EE takes over the engineering completely.
    • Customized production: Engineering and, if necessary, provision of materials are carried out by the customer.
